Cascade

Vikoma  manufacture a range of weir skimmers for different scenarios from large spills at sea to lower volume industrial applications.

A weir skimmer has a lip which is positioned at the optimum level to allow the surface layer of oil flow over the lip and be pumped away. Most weir skimmers have adjustable weir heights to allow for different thickness of the oil layer.

Weir skimmers are ideal for use in relatively calm waters and industrial situations. They can handle very high volumes of oil, though generally with a higher water content than a disc.

The Vikoma Cascade is a high capacity, hydraulically adjustable weir skimmer designed to be particularly effective in large oil spills where a high oil recovery rate is required. Two Cascade skimmers meet a Tier 1 response requirement under OPA '90.

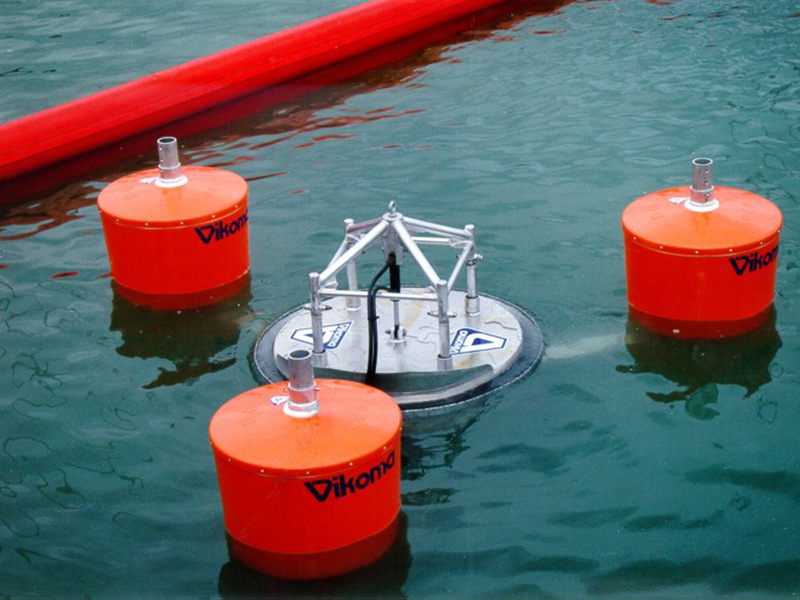

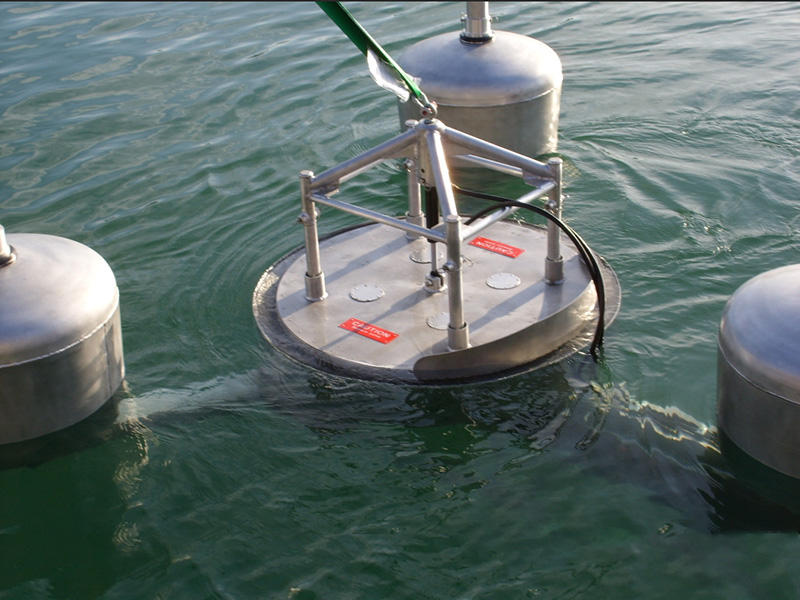

The Cascade has a floating circular weir device, with onboard hydraulically driven positive displacement VikoPump. The weir lies just below the oil surface and the top layer of oil flows over the weir lip and is pumped away to storage.

The VikoPump is particularly adept at handling highly viscous fluids and solids of up to 30mm diameter; it has been proven to be highly efficient in aggressive environments and capable of maintenance-free operation and dry running for short periods.

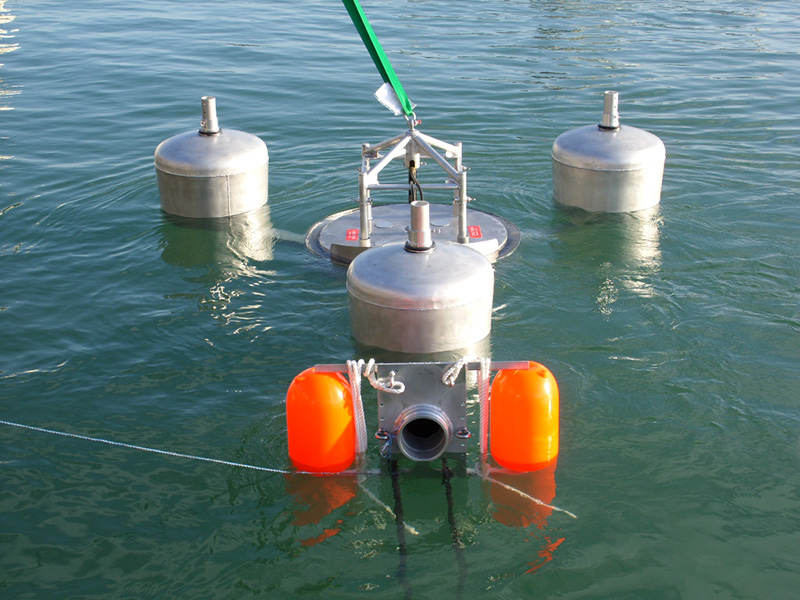

The unique discharge outlet and hose float assembly reduces hose drag and ensures stability and enables the Cascade to be used in towed array at up to 2 knots.

A remote control console allows the operator to optimise recovery by varying the pump speed and hydraulically adjusting the depth of the weir relative to the oil thickness.

The Cascade's arms are hinged and can be folded for easy transport and storage.

The system is supplied with the Cascade weir skimmer head, GP70 powerpack and control console.

1 Cascade
2 Cascade
3 Cascade
4 Cascade

Make sure you have the best

Contact Us



Download our Brochure

Download

Benefits

  • The fluid recovery rate of the Vikoma Cascade is up to 150m³/hr
  • The Cascade's arms are hinged and can be folded for transport or containerisation
  • A 6 inch nominal bore discharge hole allows for the easy discharge of higher viscosity oils

Specification

Skimmer Dimensions:

  • Radial Diameter: 314cm
  • Height: 144cm
  • Weight: 360kg
  • Recovery Rate: up to 150m³/hr
  • Recovery capacities stated are indicative and full system recovery capacities will depend on specification of the pump and other ancillary equipment connected
