Introduction

Oil spills present a significant environmental threat on a global scale, putting ecosystems at risk and necessitating rapid response measures. Additionally the financial cost of cleaning up an oil spill is significant with costs increasing if not contained effectively and oil hits the shores and wildlife.

The unpredictability of such incidents underscores the need for swift and effective oil containment and recovery solutions.

In recognising these global environmental risks, stakeholders are increasingly seeking advanced surveillance technologies to predict the movement of a spill, minimise damage and protect vulnerable ecosystems.

This article aims to explore the primary types of oil booms available, providing an in-depth analysis of their design, functionality, and application.

Understanding Oil Spill Booms

Oil spill booms are essential devices designed to confine and contain oil on water, thereby reducing the spread of oil. They serve as the first line of defence in spill response operations by isolating the affected areas and facilitating subsequent recovery efforts. These booms are integral components of environmental management strategies, implemented across a range of industries and operational contexts.

The design and functionality of oil spill booms vary widely to address the complexity of spill scenarios and differing operational conditions. Some are engineered for rapid deployment in crises, while others are designed for prolonged deployment to maintain containment and as a barrier to protect high-risk areas such as water desalination plant inlets. Selecting the right design and material for a boom for a particular application is crucial in addressing the unique challenges presented by each spill incident, ensuring that containment measures are both timely and effective. Let's explore the boom types…

Heavy-Duty and Fast-Deployment Booms

Heavy-duty fast deployment booms are specifically engineered to respond rapidly during emergency spill situations, combining robust construction with advanced deployment mechanisms. Their design focuses on ensuring that the boom can be deployed swiftly and effectively to isolate the affected area at the earliest possible moment.
These booms are built with durable, high-quality materials that maintain their integrity even in harsh environmental conditions. The engineering behind these systems reflects a careful balance between speed and durability, allowing for immediate operational readiness without compromising on strength. In this way, they play a pivotal role in the initial phases of oil spill response.

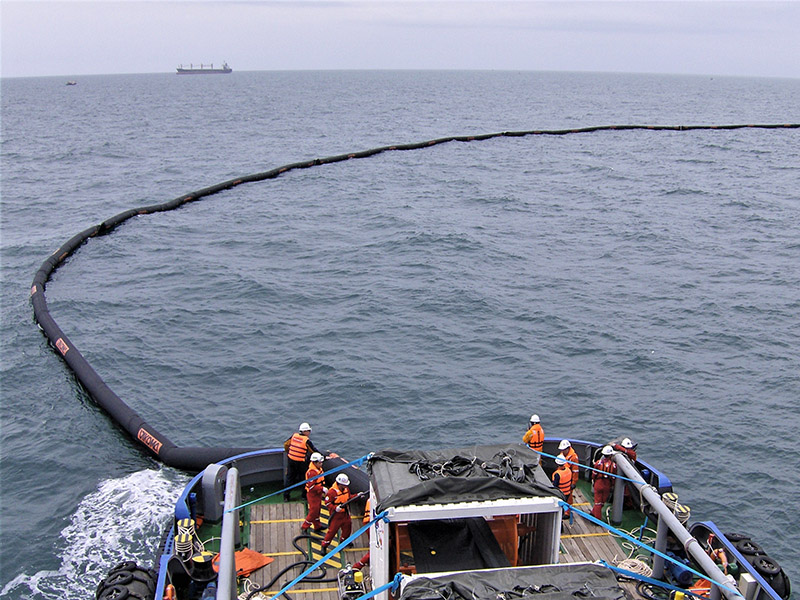

Vikoma offers two ways of inflating a heavy-duty boom.  The Hi Sprint boom offers single point inflation for the fastest inflation or Bulkhead, which is a chamber boom where each chamber is inflated separately.

Heavy duty booms are designed to meet industry regulations and operational standards. Their robust performance under varied conditions is critical for ensuring that oil spills are contained quickly, thereby minimising environmental damage as well as financial cost.

These booms, when coupled with effective maintenance and servicing can offer a long working life keeping the life time cost and environmental footprint low too.  Booms and reels can be refurbished extending the life further.   With a long life, durability and high performance these booms are a key component of a reliable oil spill response package.

Neoprene or Thermoplastic

Boom can be made from either a rubber material or thermoplastic (such as polyurethane)

Vikoma uses Neoprene for it’s rubber booms.  Neoprene is a lightweight but strong and durable rubber product providing excellent, robust performance.  The material provides flexibility for high performance wave following characteristics which is essential for a highly effective oil spill containment response.  The wave following characteristics of heavier rubber does not perform so well.

Neoprene booms are manufactured using vulcanising which provides greater strength than other techniques.

Neoprene booms are suited to extreme weather conditions and is a very durable fabric.

Thermoplastics are an alternative to Neoprene.  An example is Polyurethane.  It is a strong material, although not as robust as  Neoprene.  Polyurethane offers a cost effective solution where the durability of neoprene is not required and is usually at a lower cost.

Some boom designs can be made from either material (neoprene or polyurethane) such as Vikoma’s shore sealing boom Shore guardian or Sentinel, it’s curtain containment boom.  Other such as Hi Sprint, due to it use and design are only made in Neoprene.

Air or Foam-Filled Booms

Booms can be air filled or foam filled.

Foam filled booms are filled with foam and do not require additional inflation by air.  This makes deployment quick and reduces the risk of a boom sinking due to a puncture.  Foam filled booms require more storage area than air filled booms when not in use.

Foam filled booms are well suited to permanent or semi permanent installations.

Air filled booms need to be inflated as they are deployed.  The design of the boom will dictate how long the deployment process takes.

Some boom designs, such as Vikoma’s Sentinel boom can be either foam filled or air filled.  Sentinel is a simple high performance curtain boom which can be made from Neoprene or Polyeurethane.

Careful selection of the best design and material is key to an effective oil spill response package.  Some design of booms have in-built internal chambers to mitigate against the risk of a puncture to the boom.

Specialised Boom Types: Pod, Weir and Shore/Land Sealing Booms

Pod Booms

Pod booms are customisable solutions that are particularly effective in specialised industrial contexts where high durability is required.
Their design enables tailored configurations to meet unique operational challenges, ensuring that they can be adapted to various spill scenarios.

These booms are engineered with high-quality materials that provide robustness and ease of deployment.

Weir Booms

Weir booms are distinguished by their functional design aimed at effective recovery efficiency during oil spill operations. They are built to contain and similutaneously recover an oil spill.  The skimmer is built into the boom.

The inherent design of weir booms ensures that they can operate effectively even in variable water conditions, which is crucial for maintaining containment integrity. Their integration within a comprehensive spill response system underlines the importance of functional design in achieving both operational and environmental benefits.
As a result, weir booms have become a trusted component in oil spill management protocols, offering efficiency and reliability in critical scenarios.

Shore/Land Sealing Boom

Shore/land sealing booms are specifically designed to perform optimally in coastal and inland applications, providing a robust barrier in areas where water meets land. Their construction considers the unique challenges posed by varied terrains, ensuring that oil is effectively contained along complex shorelines and riverbanks. These booms offer flexibility across diverse operational landscapes. Their design ensures that the transition from water to land is managed with minimal disruption, which is essential for protecting both environmental and infrastructural assets. Consequently, shore/land sealing booms play a vital role in comprehensive spill response strategies, bridging the gap between maritime and land-based operations such as beaches and shorelines.

Operational and Environmental Benefits

Containment booms offer an effective way to contain oil and prevent further contamination.

From an environmental standpoint, the benefits include:

• Materials with a long life, reducing the ecological footprint of oil spill response efforts
• Appropriate maintenance can extend the working life of an oil spill boom
• Booms and reels can be returned to Vikoma for a refurbishment service in a step towards the circular economy as well as providing financial cost savings.
• Hydrocarbons are contained and impact from reduced.

From an environmental standpoint, advanced manufacturing techniques minimise energy consumed in the manufacturing process.

Conclusion

In summary, the various types of oil booms discussed provide tailored solutions for a range of spill scenarios, each offering unique benefits in terms of design and functionality.

The overall operational and environmental advantages cement the role of innovative oil spill booms in achieving both sustainability and operational excellence.

Vikoma International remains steadfast in its commitment to delivering pioneering, sustainable oil spill solutions that safeguard both operational interests and the natural environment.
